The BriteShot Luminator® AW is part of our revolutionary professional LED lighting system: Power that rivals a 3000 watt fixture, efficiency that saves your production money, and a patented cooling system that lets you strike the set and set up new shots faster than ever before.

Our patented system reinvents professional LED lighting. All 168 LEDs in the array work in conjunction to output color temperatures ranging from 3200k to 6800k, with instant recall. The Luminator® AW draws only 3.8 Amps allowing you to power multiple fixtures off standard 110V circuits, while providing a massive maximum output equivalent of a 3000 watt fixture. Because of its all LED design it never gets hot, saving you energy costs, and the setup time associated with more fragile and dangerous incandescent lighting systems.

All the LEDs in the Luminator® AW are dedicated to providing the strongest output of any all white LED fixture. Combined with our 15°, 30°, & 60° lenses, and variable color temperature you can precisely light an intimate close up or fill the set on a wide shot.

With one or more BriteShot Luminator® AWs you can replace traditional incandescent HMIs, 2Ks and 4Ks, studio flood and spot lights; all while saving on energy and cooling costs, set up and break down time and keeping the talent cool and comfortable.

These are only a small amount of the capabilities of the incredible BriteShot Luminator® AW, it also includes full DMX control, a standard 13” accessory bracket and wireless capabilities all in one 38 pound fixture. Refer to our technical specifications or contact us for more information.

Technical Specs

Output and Temperature Control

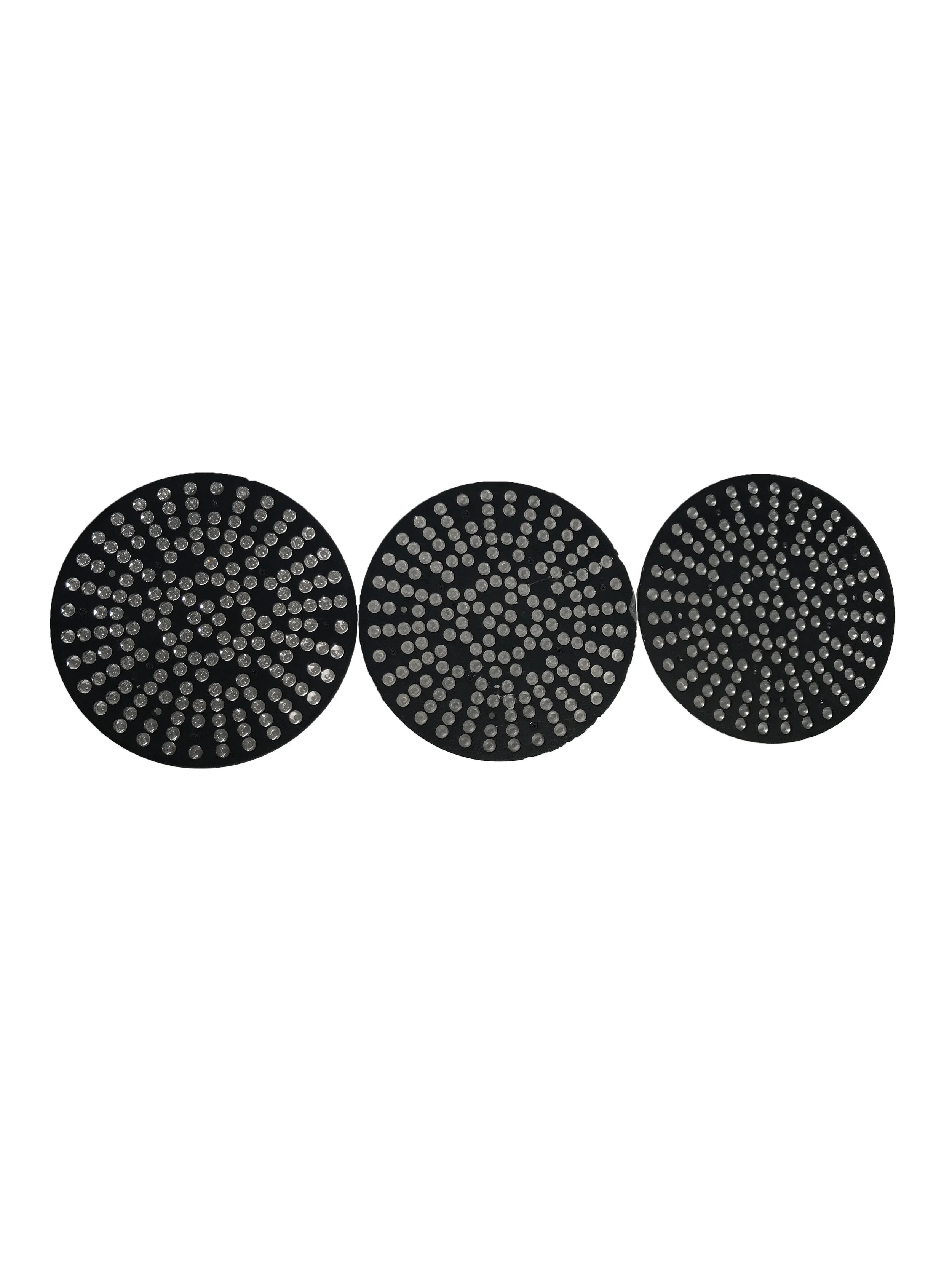

168 LEDs in groups of Amber and White. Output of each group is user controlled and designed to allow Color Temperature Control between 3200k and 6800k.

Special Lighting Effects

Paparazzi (Old & New), Lightning and Strobe. Frequency and Duty is user controlled.

Interchangeable Lenses

15°, 30°, & 60° lenses available.

Power Consumption

3.8 Amps (400 Watts) Draw, 110 Volt 50/60Hz Operation, LEDs rated for 50,000 hours of constant use.

Accessory Brackets

Industry Standard 13 Inch Accessory Bracket for use with Barndoors, Chimeras and other third party accessories.

User Interface and DMX Control

Built-In Tethered User Interface provides local access to all controllable features. DMX 5 Pin In & Out connections for remote control when light is in DMX Control Mode. Wireless Control Kits available with rentals only, please contact rental department for further information.
